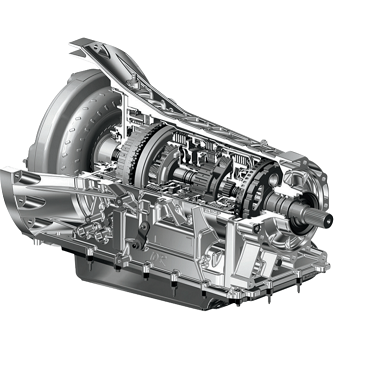

Ford 10R80 Transmission

Ford 10R80 Transmission

Ford’s 10R80 transmission features three overdrive gears and a wide 7.4:1 gear ratio span, integrated torque converter/turbine clutch helps reduce weight, while also reducing the packaging size of the transmission, and a high-speed one-way clutch that helps deliver smooth and responsive shifting.

Download Brochure

Key features

  • Integrated torque converter/ turbine clutch
  • High-speed one-way clutch
  • Seamless transition to lower gears for effective cornering
  • Integrated electric pump
  • Ultra-low viscosity transmission fluid
  • Offaxis variable-displacement pump
  • SelectShift manual mode
  • Three overdrive gears and a wide 7.4:1 gear ratio span

Technical Specifications

  • Transmission Fluid Type
    Mercon ULV
  • Converter Stall Torque Multiplication
    1.82:1
  • Dimensions (mm) H x W x L
    706.83 x 449.14 x 445.24
Show more Specifications +
  • Oil Capacity
    13 qts.
  • Weight (kg / lbs.)
    106.14 kg / 234 lbs
  • Transmission Type
    Electronically Controlled
