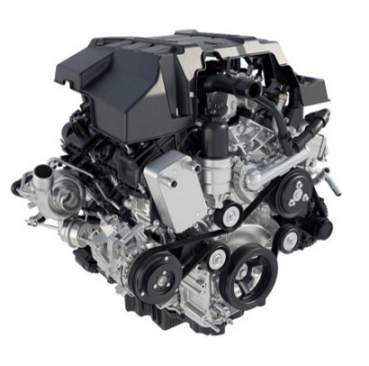

2.7L V6 Nano

Ford’s 2.7L EcoBoost V6 engine features a dual-delivery system referred to as PDFI that has two fuel injectors per cylinder. Its lightweight, compact design helps provide an impressive combination of power and engine size.

Key features

  • Interference design engine
  • Dual overhead camshafts
  • Gasoline Turbocharged Direct Injection (GTDI)
  • Composite intake manifold
  • Twin independent variable cam timing (Ti-VCT)
  • Electronic ignition system with 6 ignition coils
  • Variable displacement oil pump
  • Cartridge-style oil filter

Technical Specifications

  • Engine Type
    2.7L EcoBoost V6
  • Block/Head Material
    Compacted Graphite Iron / Aluminum
  • Bore x Stroke (mm)
    83.06 x 83.06
  • Displacement
    2.7L / 165 cu. in
  • Main Bearings
    4
  • Compression Ratio
    10.5:1
  • Fuel Injection
    Port Fuel Direct-Injection (PFDI) dual system
  • Dimensions (mm) H x W x L
    846.19 x 819.56 x 664.6
Show more Specifications +
  • Power (HP @ RPM)
    325 @5500
  • Oil Capacity
    6.0 qts
  • Oil Specification
    SAE 5w-30 Synthetic Blend Motor Oil
  • Weight (kg / lbs.)
    185.5 kg /409 lbs
  • Valve Operation
    Roller finger follower
  • Induction
    Naturally aspirated
