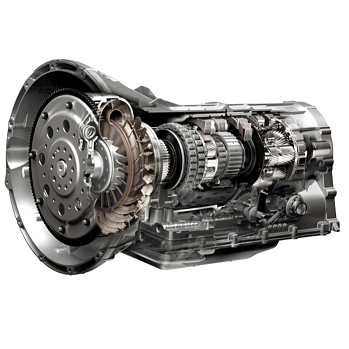

6R140

Ford’s 6R140 transmission features Lepelletier powerflow, 5 clutch packs (3 rotating, 2 brake clutches), and fixed flange or slip yoke output connection.

Download Brochure

Key features

  • Six forward speeds
  • Lepelletier powerflow
  • Fixed flange or slip yoke output connection
  • 1 simple planetary and 1 ravigneaux gear set
  • 5 clutch packs (3 rotating, 2 brake clutches)
  • Adjustable shift points with electronic controls (communicates via J1939)
  • Adaptable transmission controller
  • Capable of Load reduction in Neutral

Technical Specifications

  • Converter K Factor
    125K gas, 97K diesel
  • Installation Angle
    No more than 5 degrees
  • Torque Capacity
    935 ft-lbs
  • Continuous (degrees)
    250 degrees F
  • Transmission Fluid Type
    Mercon LV ATF
  • Dimensions (mm) H x W x L
    30.3 x 18.7 x 19.5
Show more Specifications +
  • Oil Capacity
    16 qts
  • Weight (kg / lbs.)
    156.49 kg / 345 lbs
  • Transmission Type
    Electronically Controlled
